Troubleshooting Exchange Online SMTP errors

Do not discard the suffix

A code such as 535 5.7.139 can appear with different explanatory text. That text distinguishes a disabled SMTP AUTH setting from an authentication-policy rejection or a federated identity problem. Troubleshooting from the number alone can produce the wrong fix.

Preserve the complete Exchange response

Collect the timestamp, endpoint, port, client IP, authenticated identity, envelope sender, header From address, recipient, and every line returned by the server. Device displays often truncate the useful part, so enable SMTP logging or reproduce the test from a controlled host when possible.

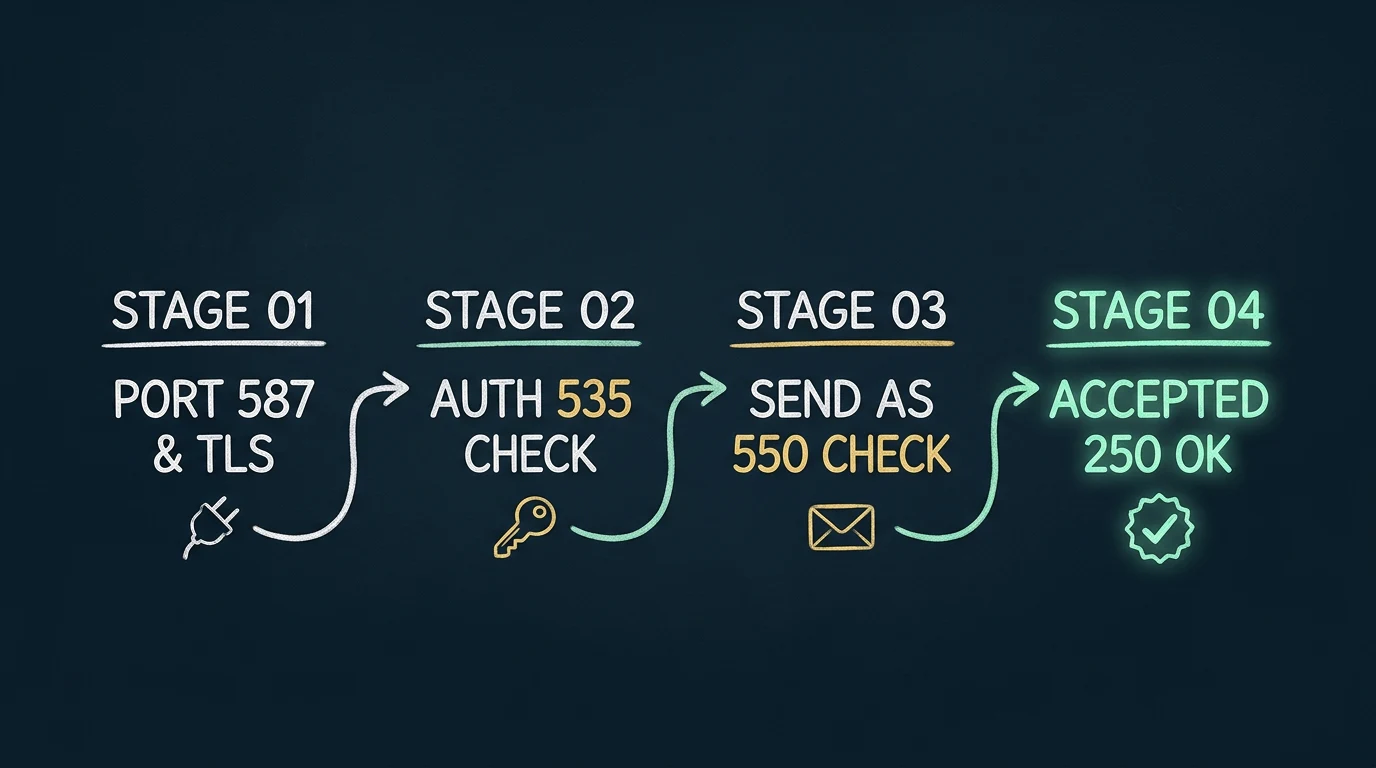

Find the failing SMTP stage

535, 5.7.3, and 5.7.139 authentication errors

Microsoft’s troubleshooting guidance groups 535 5.7.3 Authentication unsuccessful and 5.7.57 Client not authenticated to send mail around the authenticated-submission path. Verify that the client is using smtp.office365.com, that it is actually authenticating, and that its authentication method is allowed.

For ordinary SMTP AUTH, inspect both levels of Exchange control:

• Get-TransportConfig | Format-List SmtpClientAuthenticationDisabled shows the organization setting.
• Get-CASMailbox -Identity <MailboxIdentity> | Format-List SmtpClientAuthenticationDisabled shows the mailbox override.

A mailbox value of False means enabled, True means disabled, and a blank value inherits the organization setting. Those settings do not make a password-only client compatible with a policy that requires modern authentication.

Why 535 5.7.139 needs its full text

Microsoft documents multiple suffixes, including disabled SMTP client authentication, a request that does not meet authentication criteria, and federated STS reachability or HTTPS failures. HVE also has its own 535 5.7.139 organization-configuration response on its dedicated endpoint. Match the entire message to the endpoint and identity type before changing anything.

550 5.7.60 and Send As failures

5.7.60 SMTP; Client doesn't have permissions to send as this sender means the authenticated mailbox is submitting with another sender address and lacks the required Send As permission. Compare three values: the identity used during AUTH, the SMTP envelope MAIL FROM, and the message header From:.

If one mailbox legitimately submits as another, grant narrowly scoped Send As permission and verify it. If a fleet must use arbitrary addresses in an accepted domain, connector relay may fit better than mailbox client submission. Do not solve the mismatch by granting broad sender access without an explicit requirement.

550 5.1.8 Bad outbound sender is different: Microsoft associates it with a sender blocked in the Restricted Users portal. Check the exact response instead of treating every 550 as a permission problem.

Relay and tenant-attribution errors

5.7.57 Client was not authenticated to send anonymous mail during MAIL FROM commonly appears when a device connects to smtp.office365.com but does not authenticate. Direct Send and connector relay use the tenant MX endpoint instead; changing only the credentials does not convert one architecture into another.

5.7.64 TenantAttribution; Relay Access Denied points to connector identity. Microsoft identifies a changed or mismatched static source IP or TLS certificate as common causes. Confirm the public egress address seen by Microsoft, the connector configuration, and the certificate subject or SAN used on the connection.

Direct Send has a separate scope boundary: it delivers only to recipients inside the organization. An external-recipient failure is expected behavior, not a connector defect.

Throttling, concurrency, and submission limits

Ordinary authenticated SMTP submission is documented at 30 messages per minute and 10,000 recipients per day. Microsoft also allows up to three concurrent connections for a mailbox; additional simultaneous sessions can receive 432 4.3.2 Concurrent connections limit exceeded.

Exceeding the per-minute rate causes throttling and delayed carryover. Exceeding the daily recipient limit can return 554 5.2.0 STOREDRV.Submission.Exception:SubmissionQuotaExceededException. A full Sent Items mailbox can produce a different 554 5.2.2 quota error.

TLS failures can happen before any SMTP error code

Client SMTP submission requires STARTTLS with TLS 1.2 or TLS 1.3. A device offering only TLS 1.0/1.1 or obsolete cipher suites may disconnect during the handshake and never reach AUTH, so its log may contain only a generic connection or certificate error.

First test TCP reachability on port 587, then test the STARTTLS negotiation. Confirm that the device is not attempting implicit TLS on port 465, that its clock is correct, and that its trust store can validate the service certificate. The dedicated legacy-TLS endpoint exists as an opt-in compatibility measure, but Microsoft marks those older TLS versions unsupported; it should not be treated as the modern target architecture.

The deeper TLS handshake guide separates port, protocol, cipher, certificate, and authentication failures.

A disciplined diagnostic workflow

1. 01

   Identify the chosen sending method

   Record the endpoint, port, intended recipient scope, and whether identity is a mailbox, connector, HVE account, or no authentication.

2. 02

   Prove DNS and TCP reachability

   Test from the same network path as the device. A successful port test does not prove TLS or authentication.

3. 03

   Prove STARTTLS

   Capture the negotiated TLS version, cipher, certificate validation result, and where the handshake stops.

4. 04

   Validate identity and authorization

   Check the exact OAuth or credential flow, effective SMTP AUTH controls, sender match, Send As permissions, or connector identity.

5. 05

   Classify the response

   Separate transient retryable failures from permanent configuration failures and preserve the Exchange correlation text for message trace or support.

How RelayBridge changes the diagnostic boundary

RelayBridge is designed to separate local device intake from Exchange Online delivery. A device submits to a controlled local listener; RelayBridge durably queues the accepted message and owns the modern OAuth, XOAUTH2, TLS, retry, and upstream logging path.

That architecture can make temporary failures survivable and centralize diagnostics, but it does not bypass Microsoft controls. Incorrect Exchange Application RBAC, an unauthorized sender, a blocked network path, or a permanent recipient rejection must still be corrected. RelayBridge should expose those failures rather than repeatedly masking them.

Inbound STARTTLS is not currently available, so the local hop remains restricted to explicitly configured sources on a trusted private network. RelayBridge is pre-release and this article is diagnostic guidance, not a setup procedure.
